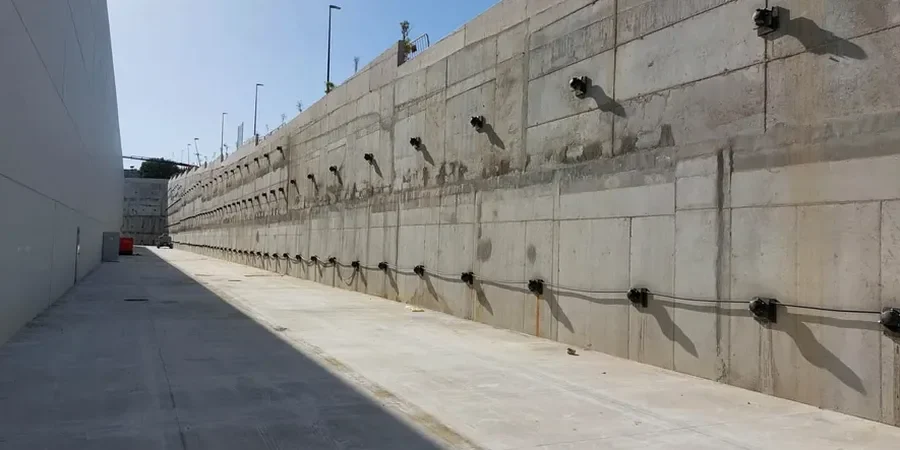

Specialist Active/Passive Anchor Design in Cheltenham

The Inferior Oolite limestone found across central Cheltenham provides high bond stress values (often exceeding 800 kPa) that suit active anchors requiring a reliable fixed length for immediate stressing. In contrast, the Charmouth Mudstone Formation—which underlies the lower-lying areas near the River Chelt—exhibits lower stiffness and higher creep potential, making passive anchors more appropriate where gradual deformation can be tolerated before the tendon mobilises its full capacity. A site-specific ground investigation to BS 5930 is essential to delineate the boundary between these units before selecting the anchor philosophy.

BS 8081 mandates investigation tests on sacrificial anchors to verify the ultimate bond resistance in the specific ground conditions. In Cheltenham’s variable limestone-mudstone sequence, we typically specify three investigation anchors per distinct soil/rock unit, loaded to 1.5 times the design load, with a 60-minute load-holding test to measure creep rates. The results directly feed into the design’s partial factors for bond resistance, often allowing a reduction in the fixed anchor length if the ground performs better than the cautious estimate assumed at the desk study stage.

A complete anchor design package—covering feasibility assessment, detailed design calculations, CAD drawings, and stressing schedules for a typical retaining wall or basement in Cheltenham—generally falls between £920 and £3,260, depending on the number of anchor rows, the complexity of the ground profile, and whether supplementary testing such as water pressure tests in the bond zone is required. Designs involving listed building proximity or third-party asset protection agreements will sit at the higher end due to additional analysis and reporting.

The overconsolidated nature of the Charmouth Mudstone means that pore water pressures can equalise slowly after excavation, leading to a time-dependent reduction in effective stress along the fixed anchor length. We incorporate this by modelling the anchor in drained conditions for the permanent case, using residual shear strength parameters from ring shear tests on remoulded samples, and by specifying a minimum free length that places the fixed anchor zone at least 4.5 metres behind the critical slip surface. For permanent works, we also require double corrosion protection (DCP) and a sacrificial steel thickness to account for the mildly acidic groundwater pH values (6.0–6.5) recorded in the Cheltenham area.
