Retaining Wall Design in Cheltenham: Structural Support for the Cotswold Edge

Retaining wall design in Cheltenham demands a clear understanding of Eurocode 7 (BS EN 1997-1:2004) and the specific ground behaviour found along the Cotswold escarpment. The town sits on a geological boundary—Middle Lias clays and silts dominate the lower areas, while Inferior Oolite limestone caps the surrounding hills. This layered stratigraphy creates challenging differential bearing pressures. A standard gravity wall detail from a different region simply will not hold here. We combine the limit state design principles of BS EN 1997 with a working knowledge of local groundwater regimes, where perched water tables in the limestone feed springs that saturate the downhill clay. Before committing to a wall cross-section, we often verify soil stiffness at depth with a CPT test to avoid over-designing for soft zones, and we correlate those results with laboratory triaxial tests to confirm effective stress parameters for the Lias material.

A retaining wall in Cheltenham’s Lias Clay is a long-term structure—design it for the drained strength and the winter groundwater peak, not just today’s site conditions.

Our service areas

Process and scope

The Lias Clay that underlies much of Cheltenham's built-up area has a medium to high plasticity index, typically between 25% and 35%, which makes it susceptible to seasonal shrink-swell cycles. This is a critical factor in retaining wall design here—lateral earth pressures can spike after a wet winter when the clay takes on water and expands against the back of the wall. We design for drained and undrained conditions, applying the partial factors from UK National Annex to BS EN 1997-1. For taller walls exceeding 2.5 metres or those surcharged by adjacent buildings on Pittville Street or The Promenade, we move beyond simple cantilever sections to reinforced counterfort or embedded retaining solutions. Our drainage detailing follows BS 8002 guidance, incorporating geotextile-wrapped granular backfill and toe drains that daylight to a positive outfall. In areas where the natural slope exceeds 15 degrees, we integrate the wall design with a broader slope stability analysis to confirm global stability, since a well-built wall can still fail if the hillside beneath it begins to creep.

Retaining Wall Design in Cheltenham: Structural Support for the Cotswold Edge — Technical reference — Cheltenham

Site-specific factors

Cheltenham sits at an elevation of roughly 60 metres AOD, rising to over 200 metres on Cleeve Hill just a few kilometres away—the highest point in the Cotswolds. That gradient channels groundwater through the limestone aquifer and into the clays of the Severn Vale, creating persistent seepage pressures behind any wall built into the slope. Our team has seen poorly drained walls begin to tilt within five years of construction, not because the concrete failed but because hydrostatic pressure was underestimated. A retaining wall in this setting must act as a drained structure first and a structural element second. We specify filter material gradings that resist clogging from the silty fines of the local clay, and we check uplift and piping at the toe using the global factor of safety approach still accepted under BS 8002 for groundwater conditions. Ignoring the water is the single most expensive mistake you can make in Cheltenham retaining wall design.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Applicable standards

Eurocode 7: Geotechnical design (BS EN 1997-1:2004 + UK National Annex), BS 8002:2015 Code of practice for earth retaining structures, BS 5930:2015 Code of practice for ground investigations, BS EN 1992-1-1:2004 Design of concrete structures, with UK NA

Typical values

Parameter	Typical value
Design standard	Eurocode 7 (BS EN 1997-1:2004 + UK National Annex)
Earth pressure model	Drained: Coulomb at δ=2/3φ’. Undrained: short-term β=0 with Su from triaxial
Backfill specification	Class 6N free-draining granular to SHW Series 600, compacted in 150 mm lifts

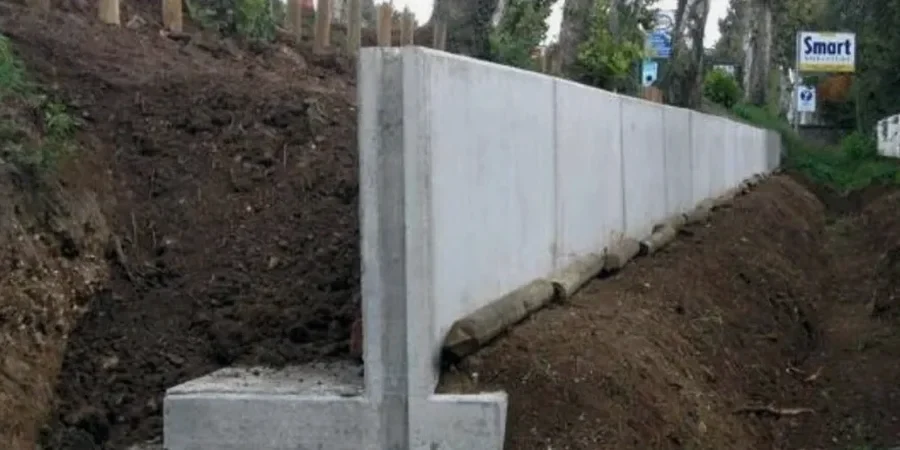

Typical wall types	Cantilever RC, counterfort, embedded sheet pile, masonry gravity with geogrid reinforcement
Surcharge allowance	10 kN/m² residential, 20 kN/m² highway (BS EN 1991-2 Load Model 1)
Drainage system	Perforated toe drain, geotextile wrap, weep holes at 1.5 m centres minimum

Frequently asked questions

How much does retaining wall design cost in Cheltenham?

For a residential retaining wall on a typical Cheltenham plot, the design fee ranges from £940 to £3,730 depending on wall height, ground conditions, and whether planning approval documentation is required. The lower end covers a simple cantilever wall up to 1.5 metres high with straightforward ground; the upper end covers a counterfort or embedded wall over 2.5 metres with surcharge, drainage design, and a full geotechnical design report.

Which ground conditions in Cheltenham most affect retaining wall design?

The Middle Lias Clay is the biggest factor—it’s a stiff, fissured clay with a plasticity index of 25–35%. Its drained shear strength can drop significantly with weathering, so we focus on the residual strength parameters (φ’r) for design. The perched groundwater in the Inferior Oolite limestone above the clay also introduces seepage pressures that must be managed with proper drainage.

Do I need planning permission for a retaining wall in Cheltenham?

Most retaining walls over 1 metre high adjacent to a highway, or over 2 metres elsewhere, will require planning permission and structural calculations certified to Eurocode 7. Cheltenham Borough Council’s building control team will expect a geotechnical design report as part of the submission, particularly if the wall is within the Cotswold Area of Outstanding Natural Beauty.
